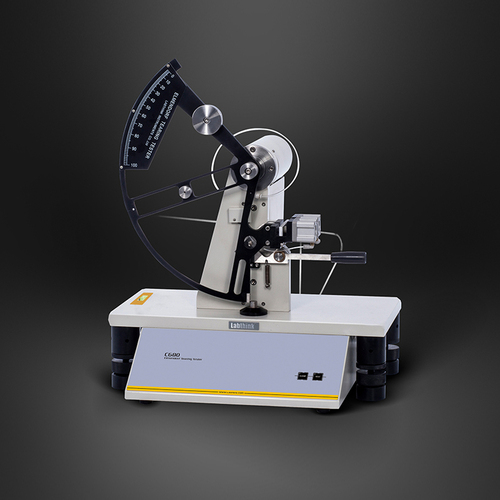

Fabric Tearing Strength Testing Machine Paper Tear Tester
2000.00 - 20000.00 USD ($)/Set
Product Details:
- Power Supply 220VAC 50Hz / 120VAC 60Hz
- Port Size 4 mm PU Tubing
- Gas Pressure 0.6 MPa mpa
- Usage Fabric Testing Instrument
- Capacity 200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf Kg/hr
- Machine Weight 23.5kg Kilograms (kg)
- Click to View more
-
Share Your Product:
X
Fabric Tearing Strength Testing Machine Paper Tear Tester Price And Quantity
- 1 Set
- 2000.00 - 20000.00 USD ($)/Set
Fabric Tearing Strength Testing Machine Paper Tear Tester Product Specifications
- 0.6 MPa mpa
- Fabric Testing Instrument
- 23.5kg Kilograms (kg)
- 200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf Kg/hr
- 4 mm PU Tubing
- 220VAC 50Hz / 120VAC 60Hz
Fabric Tearing Strength Testing Machine Paper Tear Tester Trade Information
- Jinan
- 10 Set Per Week
- 7 Days
- Standard Veneer Case
- All India
- ISO 9001, CE
Product Description
SLY-S1 Fabric Tearing Strength Testing Machine Paper Tear Tester is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens.
Features:
- SLY-S1 Elmendorf Tear Tester is controlled by computer with automatic and electronic measurement which is convenient for the operation
- Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively
- Computer assisted horizontal adjustment system could maintaina the instrument optimum status
- Equipped with pendulums of multiple capacities
- Professional software supports multi-unit data output
- Equipped with RS232 port which is convenient to the data transmission and external connection
- Supports LystemTM Lab Data Sharing System for uniform and systematic data management
Technical Specification
| Specifications | SLY-S1 Elmendorf Tear Tester |
|---|---|
| Pendulum Capacity | 200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf |
| Gas Supply Pressure | 0.6 MPa (outside of supply scope) |
| Port of Gas Supply | 4 mm PU Tubing |
| Instrument Dimension | 480 mm (L) x 380 mm (W) x 560 mm (H) |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Net Weight | 23.5 kg (Basic Pendulum of 200 gf) |
