Detection Method Water Vapor Permeability Tester
10000.00 - 130000.00 USD ($)/Set
Product Details:
- Power Supply 220VAC 50Hz / 120VAC 60Hz
- Specimen Size 100 mm Millimeter (mm)
- Temperature 5C ~ 95C Celsius (oC)
- Gas Pressure 0.12 MPas mpa
- Port Size 1/8 inch copper tubing
- Number of Specimens 1
- Test Range 0.001 ~ 50 g/m224h
- Click to View more
X
Detection Method Water Vapor Permeability Tester Price And Quantity
- 10000.00 - 130000.00 USD ($)/Set
- 1 Set
Detection Method Water Vapor Permeability Tester Product Specifications
- 36 kg Kilograms (kg)
- water vapour transmission rate test
- 5C ~ 95C Celsius (oC)
- 0.12 MPas mpa
- micro-computer
- 0.001 ~ 50 g/m224h
- 0.001 ~ 50 g/m2 24h Cubic Inches (in3)
- 100 mm Millimeter (mm)
- 220VAC 50Hz / 120VAC 60Hz
- 1
- 1/8 inch copper tubing
Detection Method Water Vapor Permeability Tester Trade Information
- 10 Set Per Week
- 7 Days
- Veneer Case
- All India
- ISO 9001, CE
Product Description

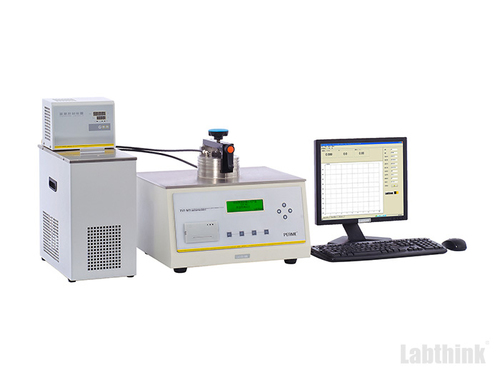

Electrolytic Detection Method Water Vapor Permeability Tester
This apparatus is professionally used for deciding water vapor transmission rate of composite films, plastic films, back-sheets, high barrier materials, sheeting, waterproof materials, aluminum foils, and other things utilized in medical and sanitary industry. By examining the water vapor transmission rate, the practical indexes of materials could be controlled to cater to the necessities for production.
Principle
Below a convinced test temperature, a continuous humidity change is produced amid two sides of the test example. The water vapor infuses via the example into the dry side and at that time is taken to the detector, where relative electric signs will be made. The water vapor transmission degree and other limits can be got by examining and scheming these electrical indications.
Standards
This test instrument imitates to the following values:
- GB/T 21529, ISO 15106-3, YBB 00092003, DIN 53122-2
Basic Applications
Films
-
With plastic films, paper-plastic composite films, plastic composite films, aluminized films, coextruded films, aluminum foil composite films, aluminum foils, and several others
Sheeting
-
Including several sorts of rubber and building materials, engineering plastics, e.g. PVC, PP, and PVDC
Packages
-
Together with plastic, paper, rubber, glass and metal packages, paper-plastic composite, e.g. peanut oil packages, Coke bottles, materials, metal three-piece cans, vacuum bags, plastic packages for soft tubes for toothpaste, cosmetic, yogurt cups and jelly.
Extended Applications
Package Caps
-
Examine seal presentation of dissimilar package caps
Solar Back-Sheets
-
With solar back-sheets
Plastic Pipes
- Counting numerous sorts of pipes, e.g. PPR
- Plastic Packages for Health Care Products and Drugs
- Examine water vapor transmission degree of plastic bottles for health care goods and drug, e.g. infusion bags, eye drop bottles, and health care merchandise packages
Medical items and Related Products
-
Including medical plaster covers, aseptic wound defensive films, face masks and additional materials
Biodegradable Films
-
The oxygen transmission speed is a vital issue that touches biodegradable film features and additional development
LCD Monitor Films
-
With LCD monitor films
Cosmetics
-
Examine water vapor penetrability of cosmetics
Features:
- The tool is regulated by micro-computer with LCD, PVC operating panel and menu interface, that could suitably spread test results, test data, and test curves
- Micro-printer and typical RS232 port for suitable data production and transfer
- Assists LystemTM Lab Data Sharing System for unchanging organization of test consequences and test reports
- Reference film for profligate calibration to confirm precise and worldwide test data
- The system could be protracted for the water vapor transmission degree test of ended package ampules by special customization
- Extensive range and high-precision of involuntary temperature regulator to support mixtures of non-standard test circumstances
Standard Configurations
-
Micro-printer, Mainframe, Continuous Temperature Regulator Device, Exactness Pressure Controller for Nitrogen Cylinder, Desiccant, Porous Ceramic Tray, Vacuum Grease and Round Sample Cutter
Optional Parts
-
Communication Cable and Professional Software
Note
-
The gas supply harbor of the tool is 1/8 inch copper tubing;
- Clienteles will require to make for gas supply, salt reagent and distilled water.
- Specifications
Technical Specifications
Specification
Film Test
Test Range
0001 50 gm224h standard
001 1000 gm224h optional
Number of Specimens
1
Resolution
01ppm
Temperature Range
5C 95C
Temperature Accuracy
01C
Humidity Range
0RH 2RH 985RH 100RH standard is 90RH
Accuracy
1RH
Test Area
3848 cm2
Thickness
1 mm accessories required for thicker specimens
Specimen Size
100 mm
Carrier Gas
99999 High Purity Nitrogen outside of supply scope
Gas Flow
100 mLmin
Gas Supply Pressure
012 MPas
Port Size
18 inch copper tubing
Instrument Dimension
500 mm L x 400 mm W x 360 mm H
Power Supply
AC 220V 50Hz
Net Weight
36 kg
